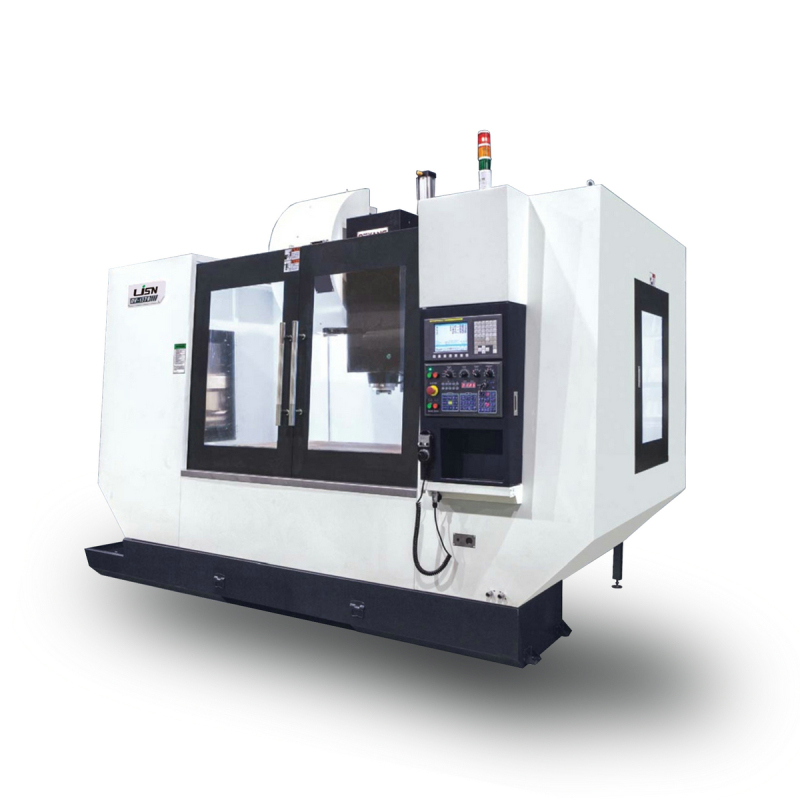

| Items | Units | Model：VMC-1270 | | Travel&accuracy | | X-axis | mm | 1200 | | Y-axis | mm | 700 | | Z-axis | mm | 600 | | Fast feedof X&Y axis | mm/min | 18000 | | Fast feedof Z axis | mm/min | 18000 | | Position accuracy | mm | +0.005/300mm | | Repeated accuracy | mm | +0.003/300mm | | Principal axis | | Distance from spindle nose to worktable | mm | 150-850 | | Distance from spindle center to main column | mm | 700 | | Axis cutting feed rate | mm/min | 1-8000 | | Motor power of XYZ axes | kw | 3 | | Spindle speed (standard) | rpm | 50-8000 | | Spindle speed (special) | rpm | 50-12000 | | Spindle motor | HP | 15 | | Spindle end specification |
| BT50 | | Worktable | | Bed dimension | mm | 1360*700 | | Max weigh | kg | 1300 | | T groove number |
| 5 | | T groove size | mm | 18 | | Tool magazine | | Automatic tool changer | TYPE | Tool Number/Tool arm | | Cutting tools number | PCS | - | | Others | | Controller |
| MITSUBISHI/FANUC | | Cutting pump | HP | 2021/1/2 | | Electricity demand | kva | 50 | | Air pressure | kg/cm2 | 6-7bra | | Machine tool weight | kg | 9000 |
|
|
