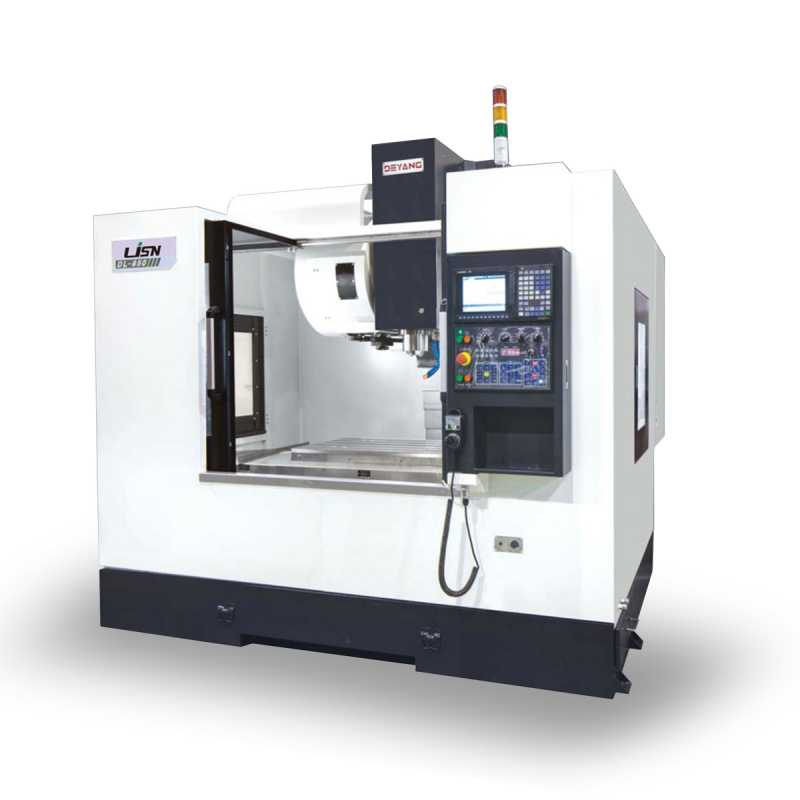

| Items | Units | Model：VMC-850C | | Travel&accuracy | | X-axis | mm | 800 | | Y-axis | mm | 500 | | Z-axis | mm | 500 | | Fast feedof X&Y axis | mm/min | 48000 | | Fast feedof Z axis | mm/min | 48000 | | Position accuracy | mm | +0.005/300mm | | Repeated accuracy | mm | +0.003/300mm | | Principal axis | | Distance from spindle nose to worktable | mm | 120-670 | | Distance from spindle center to main column | mm | 500 | | Axis cutting feed rate | mm/min | 1-15000 | | Motor power of XYZ axes | kw | 2 | | Spindle speed (standard) | rpm | 50-10000 | | Spindle speed (special) | rpm | 50-12000 | | Spindle motor | HP | 7.5 | | Spindle end specification |
| BT-40 | | Worktable | | Bed dimension | mm | 1000*500 | | Max weigh | kg | 600 | | T groove number |
| 5 | | T groove size | mm | 18 | | Tool magazine | | Automatic tool changer | TYPE | 刀臂式刀库 | | Cutting tools number | PCS | 24 | | Others | | Controller |
| MITSUBISHI,FANUC | | Cutting pump | HP | 1月2日 | | Electricity demand | kva | 25 | | Air pressure | kg/cm2 | 6-7bra | | Machine tool weight | kg | 5500 |
|
|
